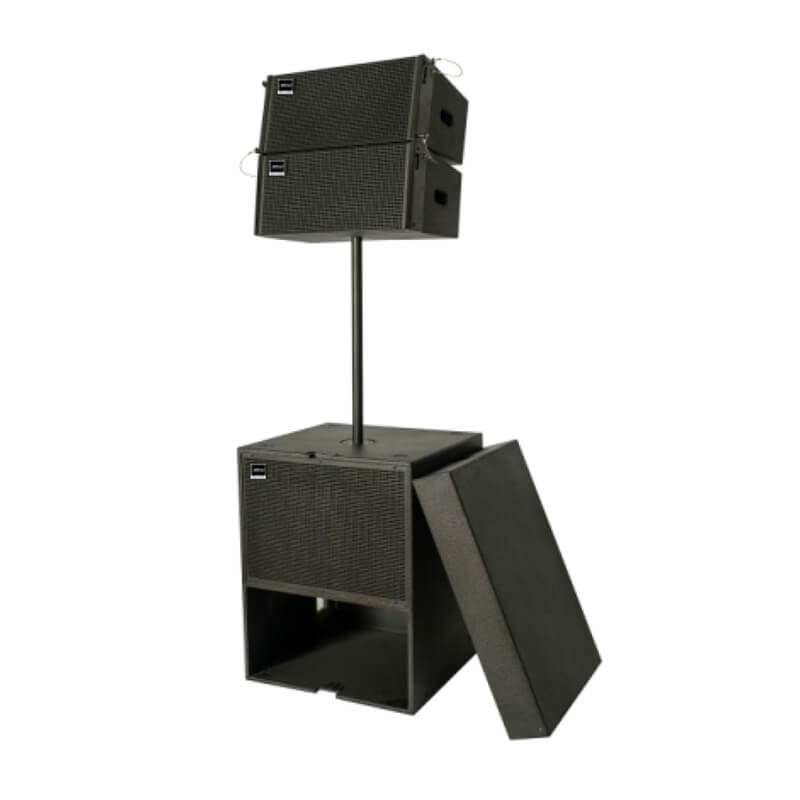

Single 10-inch Line Array Speaker LQ310 LQ318S

The LQ300 series is an independent research and development of a newly launched multi-functional line array professional speaker. Its system can be transported or stacked in various ways. Its box size, shape, weight and equipment are all designed for easy transportation and handling and special medium and small portable application stage performances, with long-range effects, convenient movement, and simple assembly.

The box body is made of high-quality multi-layer birch splint. The surface of the box body is sprayed with wear-resistant oily smooth black paint and has water resistance and corrosion resistance. The hard surface coating can withstand various types of friction and collisions, durable, and the surface net is affixed with a high permeability acoustic sponge., Waterproof grime and rainwater erosion, the use of a specially designed line array of fiberglass treble horn, improved the output pressure, equipped with accurate hanging pieces degree can easily adjust the simple sound box angle, making the sound on the scene more uniform, coverage The range is wider, The overall timbre is delicate and layered, rich and balanced.

Applicable: Small and medium-sized live sound, performing arts clubs, indoor and outdoor mobile stage performances, weddings, hotel engineering and other special products

系列类型

Series type

单10寸线阵列音箱

Single 10-inch line array speaker

单18寸落地式线阵列超低音箱

Single 18-inch landing line array ultra-low speakers

型号model LQ310 LQ318S
单元配置

System composition

LF 1×10”

HF 2×1.75in

LF 1×18”



频响Frequency response 65Hz-20KHz 33Hz-330Hz
灵敏度Sensitivity 105dB 102dB
最大声压

The maximum sound pressure

135dB 138dB
功率(连续)RMS power 500W 800W
功率(峰值)Peak power 1000W 1600W
标称阻抗impedance
覆盖角度Dispersion 120°H×10°V 360°
吊挂Hanging. LQ专用预装件Special pre-assembly LQ专用预装件Special pre-assembly
底座Bottom sit 35mm金属底座Metal base M20螺纹金属底座Thread metal base
连接器Connector 2×speakon NL4MP 2×speakon NL4MP
深×宽×高

Deep×width× height

358×526×300mm 606×620×925mm
重量weight 17Kg 56kg
