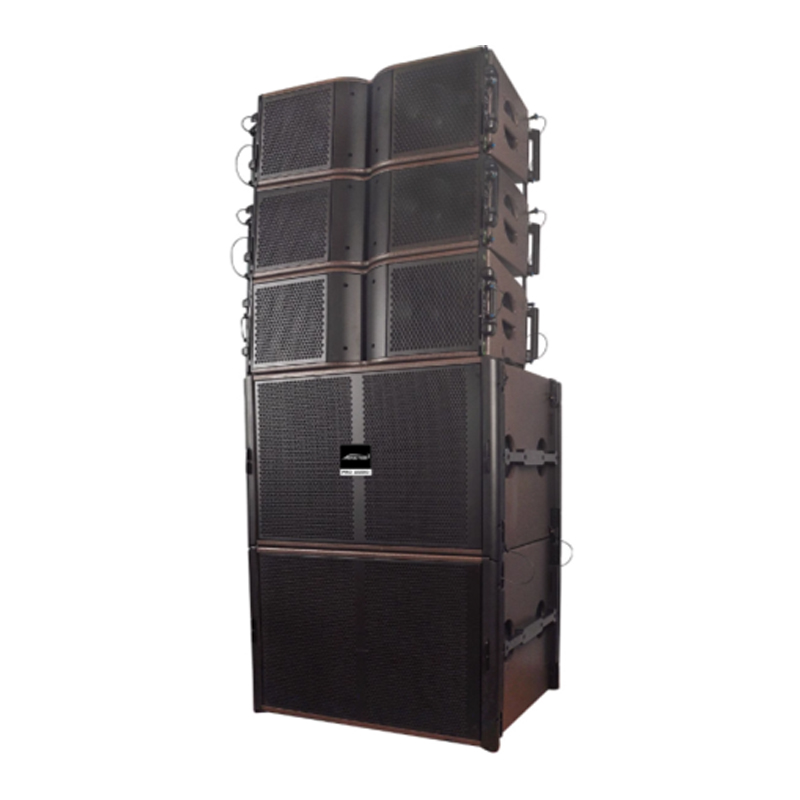

LQ2 line array speakers, the system uses advanced frequency division technology, so that the sound transmission distance is farther. When multiple speakers are arranged to form a linear array, the acoustic interference between the speakers is minimized. Professional hanging system, safe, fast and reliable.
The outer layer of the box is made of high-quality multi-layer birch plywood. The surface of the box is coated with wear-resistant black paint, and it has a water-resistant and corrosion-resistant black coating outer layer. It can minimize the damage caused by friction and is durable when used in mobile performances. The surface net is affixed with a high permeability acoustic sponge, waterproof dirt and rainwater erosion.
The use of a specially designed wire array fiberglass treble horn improves the output pressure and is equipped with an accurate hanging part degree to adjust the angle of the simple speaker, making the sound on the scene more uniform and the coverage wider.
The overall tone is delicate and natural.
Applicable to: various outdoor large-scale performances, gymnasium sound expansion, theater sound expansion, clubhouse, multi-purpose hall, auditorium, auditorium and other special products
| 系列类型
Series type |
双8寸专业线阵列全频
Double 6.5 inch line array speaker |
单18寸专业线阵列全频
Double 15 inch hanging line array subwoofer |
| 型号model | LQ2208 | LQ2218S |
| 单元配置
System composition |
LF 1×8”
HF 1×1.75 in |
LF 1×18”
|
| 频响Frequency response | 58Hz-20KHz | 30Hz-300Hz |
| 灵敏度Sensitivity | 103dB | 100dB |
| 最大声压
The maximum sound pressure |
136dB | 143dB |
| 功率(连续)RMS power | 600W | 1000W |
| 功率(峰值)Peak power | 1200W | 2000W |
| 标称阻抗impedance | 4Ω | 4Ω |
| 覆盖角度Dispersion | 120°H×10°V | 360°×360° |
| 吊挂Hanging. | LQ专用预装件Special pre-assembly | LQ专用预装件Special pre-assembly |
| 底座Bottom sit | … | … |
| 连接器Connector | 2×speakon NL4MP | 2×speakon NL4MP |
| 深×宽×高
Deep×width× height |
250mm×750mm×308mm | 700mm×750mm×700mm |
| 重量weight | Kg | 73Kg |
