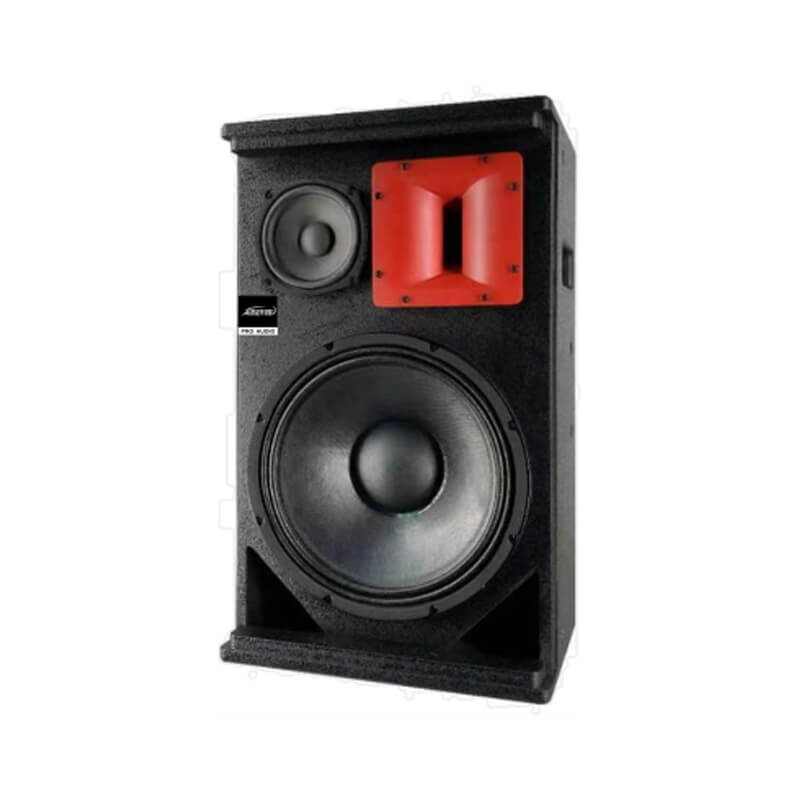

The LQ300 series is an independent research and development of a newly launched multi-functional line array professional speaker. Its system can be transported or stacked in various ways. Its box size, shape, weight and equipment are all designed for easy transportation and handling and special medium and small portable application stage performances, with long-range effects, convenient movement, and simple assembly.
The box body is made of high-quality multi-layer birch splint. The surface of the box body is sprayed with wear-resistant oily smooth black paint and has water resistance and corrosion resistance. The hard surface coating can withstand various types of friction and collisions, durable, and the surface net is affixed with a high permeability acoustic sponge., Waterproof grime and rainwater erosion, the use of a specially designed line array of fiberglass treble horn, improved the output pressure, equipped with accurate hanging pieces degree can easily adjust the simple sound box angle, making the sound on the scene more uniform, coverage The range is wider, The overall timbre is delicate and layered, rich and balanced.
Applicable:
Small and medium-sized live sound, performing arts clubs, indoor and outdoor mobile stage performances, weddings, hotel engineering and other special products
| 系列类型Series type | 10寸全频专业音箱
6-inch full-range professional speaker |
12寸全频专业音箱
12-inch full-range professional speaker |
15寸全频专业音箱
15-inch full-range professional speaker |
双15寸全频专业音箱
Double 15-inch full-range professional speaker |
| 型号model | MS310 | MS312 | MS315 | MS325 |
| 单元配置
System composition |
LF 1×10”
ALTO 1×70mm HF 1×1.35in |
LF 1×12”
ALTO 1×70mm HF 1×1.75in |
LF 1×15”
ALTO 1×100mm HF 1×1.75 in |
LF 2×15”
ALTO 1×140mm HF 1×3 in |
| 频响Frequency response | 55Hz-20KHz | 48Hz-20KHz | 40Hz-20KHz | 40Hz-20KHz |
| 灵敏度Sensitivity | 98dB | 101dB | 102dB | 103dB |
| 最大声压
The maximum sound pressure |
122dB | 130dB | 132dB | 135dB |
| 功率(连续)RMS power | 250W | 400W | 450W | 900W |
| 功率(峰值)Peak power | 500W | 800W | 900W | 1800W |
| 标称阻抗impedance | 8Ω | 8Ω | 8Ω | 4Ω |
| 覆盖角度Dispersion | 70°×90° | 70°×90° | 70°×90° | 120°×30° |
| 吊挂Hanging. | LQ专用预装件Special pre-assembly | LQ专用预装件Special pre-assembly | LQ专用预装件Special pre-assembly | LQ专用预装件Special pre-assembly |
| 底座Bottom sit | 35mm金属底座Metal base | 35mm金属底座Metal base | 35mm金属底座Metal base | 35mm金属底座Metal base |
| 连接器Connector | 2×speakon NL4MP | 2×speakon NL4MP | 2×speakon NL4MP | 2×speakon NL4MP |
| 高×宽×深
height×width×Deep |
535x305x340 mm | 595x360x410mm | 720x442x453 mm | 1229x549x505mm |
