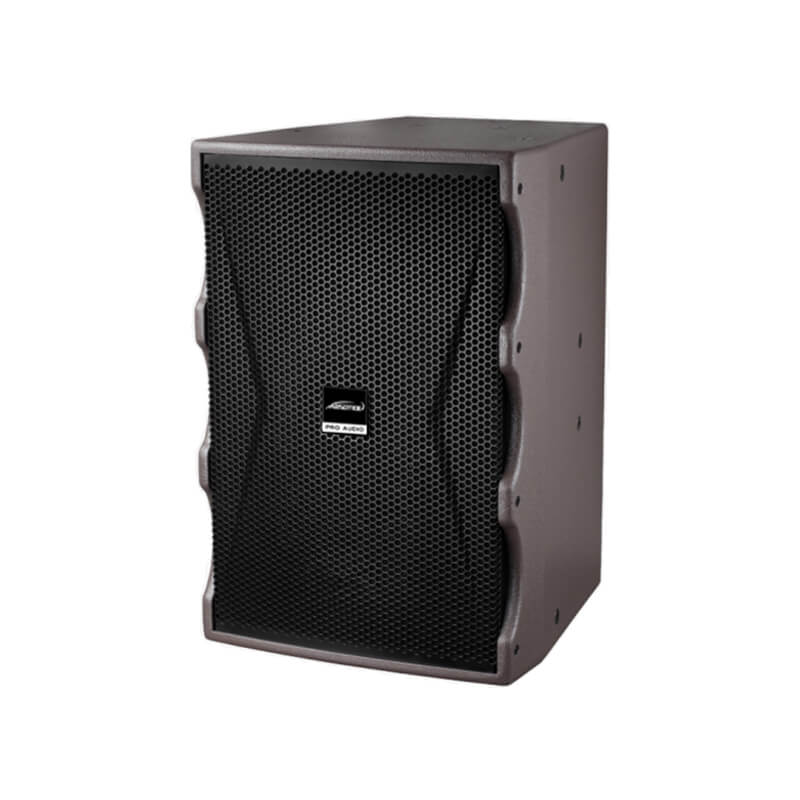

Full-range Line Array Professional Speaker AK9010 AK9012 AK9015

AK900 is a new multi-functional speaker independently developed and launched. This series can meet the requirements of different types of applications. It can be placed in a variety of ways to meet the flexibility of use in different occasions. Unique and novel appearance design, box structure with rich functions, elaborate and high sound characteristics, the box body is made of high-quality birch plywood, the surface of the box body is sprayed with wear-resistant oily smooth black paint and has water-resistant and corrosion-resistant effects, the hard surface coating can withstand various frictions and collisions, durable, the surface net is pasted with high sound transmission rate acoustic sponge, waterproof dirt and rain erosion. It makes the live sound more uniform, covers a wider range, and the overall timbre is exquisite, layered, rich, balanced and natural.

Applicable:

Small and medium-sized live sound, performing arts clubs, indoor and outdoor mobile stage performances, weddings, hotel engineering and other special products

系列类型Series type 10寸全频专业音箱

6-inch full-range professional speaker

12寸全频专业音箱

12-inch full-range professional speaker

15寸全频专业音箱

15-inch full-range professional speaker

型号model AK9010 AK9012 AK9015
单元配置

System composition

LF 1×10”

HF 1×1.35in

LF 1×12”

HF 1×1.75in

LF 1×15”

HF 1×1.75 in

频响Frequency response 55Hz-20KHz 48Hz-20KHz 40Hz-20KHz
灵敏度Sensitivity 98dB 101dB 102dB
最大声压

The maximum sound pressure

122dB 130dB 132dB
功率(连续)RMS power 250W 400W 450W
功率(峰值)Peak power 500W 800W 900W
标称阻抗impedance
覆盖角度Dispersion 70°×90° 70°×90° 70°×90°
吊挂Hanging. LQ专用预装件Special pre-assembly LQ专用预装件Special pre-assembly LQ专用预装件Special pre-assembly
底座Bottom sit 35mm金属底座Metal base 35mm金属底座Metal base 35mm金属底座Metal base
连接器Connector 2×speakon NL4MP 2×speakon NL4MP 2×speakon NL4MP
高×宽×深

height×width×Deep

535x305x340 mm 595x360x410mm 720x442x453 mm
