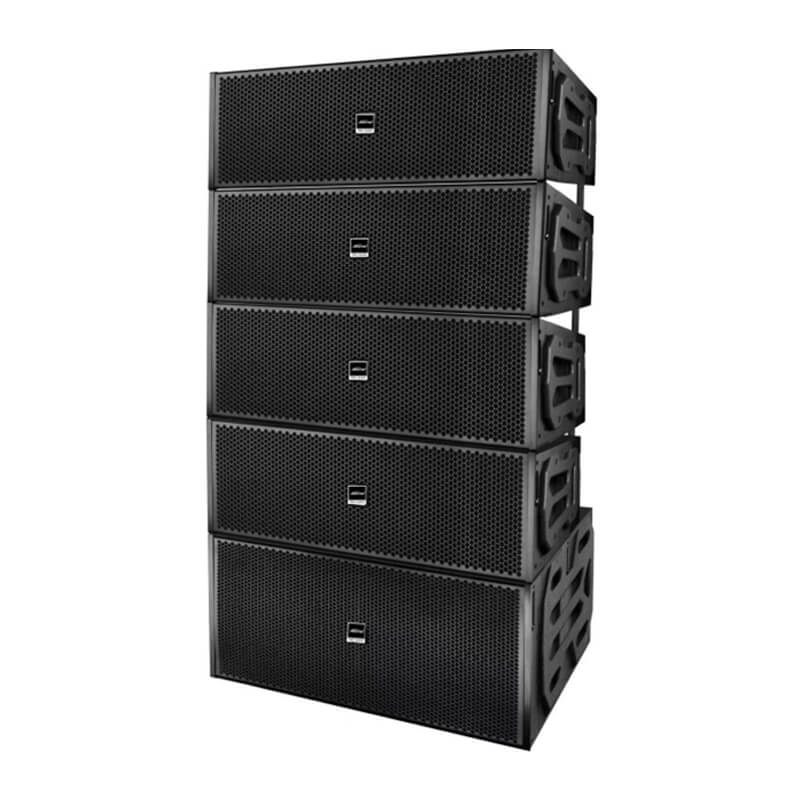

Double 12-inch Line Array Speaker LQ2212 LQ2218S

The LQ200 series is an independent research and development of a new multi-functional line array professional speaker that can meet the needs of various types of applications, unique and novel design, rich box structure, and carefully tuned sound characteristics. The box body is made of high-quality multi-layer birch splint. The surface of the box body is sprayed with wear-resistant oily smooth black paint and has water resistance and corrosion resistance. The hard surface coating can withstand various types of friction and collisions, durable, and the surface net is affixed with a high permeability acoustic sponge., Waterproof grime and rainwater erosion, the use of a specially designed line array of fiberglass treble horn, improved the output pressure, equipped with accurate hanging pieces degree can easily adjust the simple sound box angle, making the sound on the scene more uniform, coverage The range is wider, The overall timbre is delicate and layered, rich and balanced.

Applicable: Small and medium-sized live sound, performing arts clubs, indoor and outdoor mobile stage performances, weddings, hotel engineering and other special products

系列类型

Series type

双12寸线阵列音箱

  Double 12-inch line array speaker

双18寸吊挂式线阵列超低音箱

Double 15-inch hanging line array subwoofer

型号model LQ2212 LQ2218S
单元配置

System composition

LF 2×12”

HF 1×1.75in

LF2×18”



频响Frequency response 55Hz-20KHz 35Hz-300Hz
灵敏度Sensitivity 108dB 100dB
最大声压

The maximum sound pressure

141dB 148dB
功率(连续)RMS power 1000W 2000W
功率(峰值)Peak power 2000W 4000W
标称阻抗impedance
覆盖角度Dispersion 120°H×10°V 360°×360°
吊挂Hanging. LQ专用预装件Special pre-assembly LQ专用预装件Special pre-assembly
底座Bottom sit
连接器Connector 2×speakon NL4MP 2×speakon NL4MP
深×宽×高

Deep×width× height

370mm×1093mm×480mm 463mm×1093mm×700mm
重量weight 20Kg 38kg
