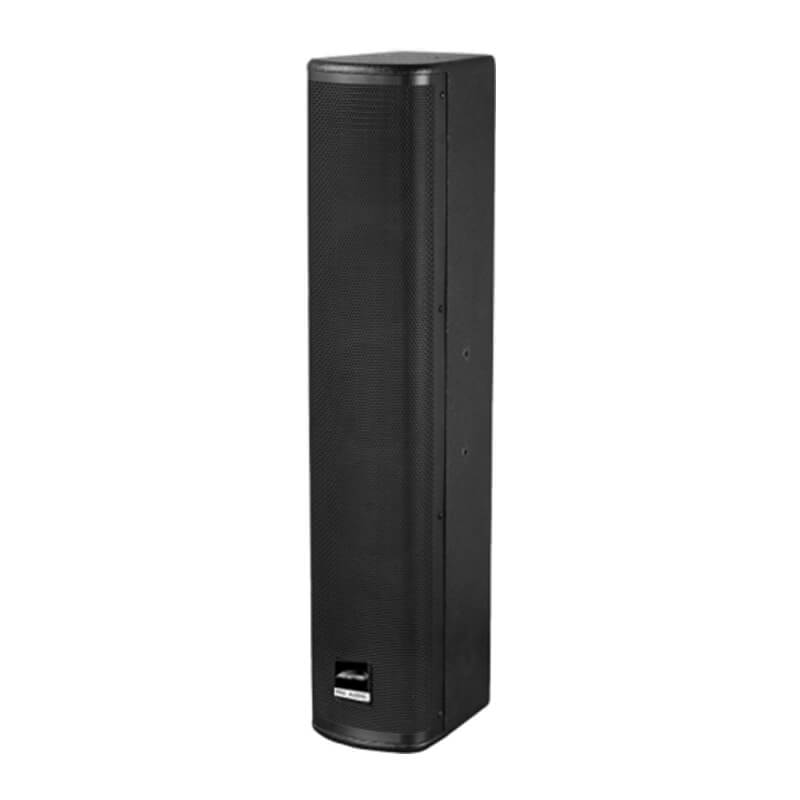

4.5-inch Professional Sound Column MS430 MS450 MS470

MS4 series is a new multi-functional linear sound column independently developed and launched, which is characterized by excellent sound expression and clarity. The sound quality of this speaker is exquisite, and the installation and connection are simple and convenient. Meet different sound requirements and better meet the restoration of human voice. The surface of the box body is sprayed with a wear-resistant, oily and smooth black coating, which has the function of water resistance and corrosion resistance. The hard surface coating can withstand all kinds of friction and collision, and is durable. The surface net is pasted with an acoustic sponge with high sound transmission rate, which can prevent the erosion of dirt and rain, so that the sound on the spot is more uniform, the coverage is wider, and the overall tone is exquisite, layered, rich, balanced and natural.

Applicable to:

Multifunctional hall, auditorium, opera house, conference room and various indoor places such as sound reinforcement special products

系列类型

Series type

4.5寸专业音柱

4.5-inch professional sound column

4.5寸专业音柱

4.5-inch professional sound column

4.5寸专业音柱

4.5-inch professional sound column

型号model MS430 MS450 MS470
单元配置

System composition

LF 2×4.5”

HF 1×1.35in

LF 4×4.5”

HF 1×1.35in

LF 6×4.5”

HF 1×1.35in

频响Frequency response 100Hz-20KHz 90Hz-20KHz 80Hz-20KHz
灵敏度Sensitivity 98dB 99dB 100dB
最大声压

The maximum sound pressure

115dB 118dB 123dB
功率(连续)RMS power 100W 180W 300W
功率(峰值)Peak power 200W 360W 600W
标称阻抗impedance
覆盖角度Dispersion 120°×30° 120°×30° 120°×30°
吊挂Hanging. LQ专用预装件Special pre-assembly LQ专用预装件Special pre-assembly LQ专用预装件Special pre-assembly
底座Bottom sit 35mm金属底座Metal base 35mm金属底座Metal base 35mm金属底座Metal base
连接器Connector 2×speakon NL4MP 2×speakon NL4MP 2×speakon NL4MP
深×宽×高

Deep×width× height

445 x 143 x 185mm 678  x 143 x 185mm 910 x 143 x 185mm
重量weight
