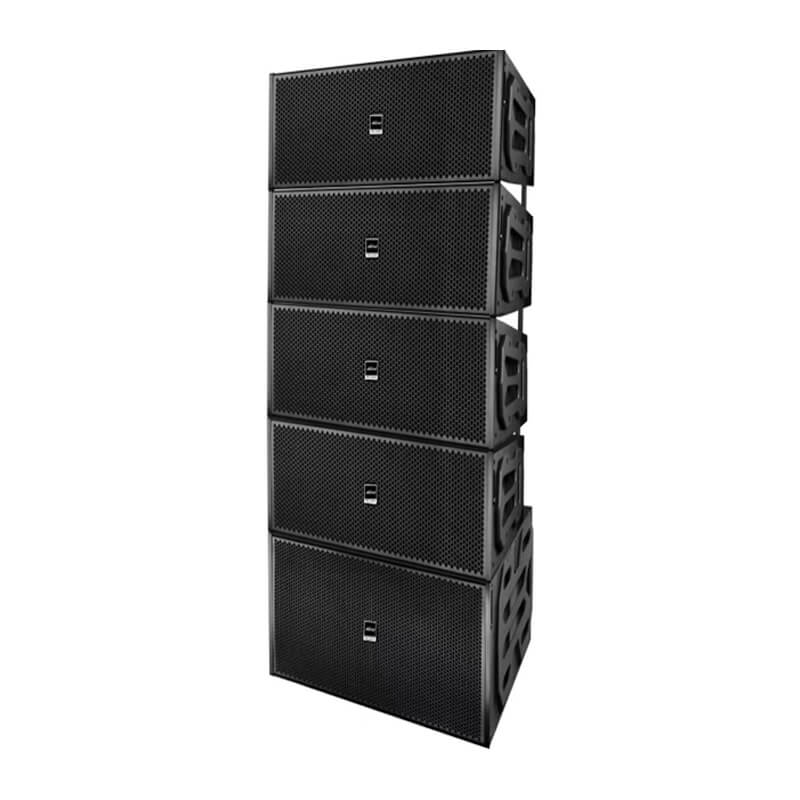

The LQ200 series is an independent research and development of a new multi-functional line array professional speaker that can meet the needs of various types of applications, unique and novel design, rich box structure, and carefully tuned sound characteristics. The box body is made of high-quality multi-layer birch splint. The surface of the box body is sprayed with wear-resistant oily smooth black paint and has water resistance and corrosion resistance. The hard surface coating can withstand various types of friction and collisions, durable, and the surface net is affixed with a high permeability acoustic sponge., Waterproof grime and rainwater erosion, the use of a specially designed line array of fiberglass treble horn, improved the output pressure, equipped with accurate hanging pieces degree can easily adjust the simple sound box angle, making the sound on the scene more uniform, coverage The range is wider, The overall timbre is delicate and layered, rich and balanced.
Applicable: Small and medium-sized live sound, performing arts clubs, indoor and outdoor mobile stage performances, weddings, hotel engineering and other special products
| 系列类型
Series type |
单12寸线阵列音箱
10-inch line array speaker |
单18寸吊挂式线阵列超低音箱
Single 18-inch hanging line array subwoofer |
| 型号model | LQ2112 | LQ2118S |
| 单元配置
System composition |
LF 1×12”
HF 1×1.75in |
LF 1×18”
|
| 频响Frequency response | 57Hz-20KHz | 35Hz-300Hz |
| 灵敏度Sensitivity | 104dB | 100dB |
| 最大声压
The maximum sound pressure |
136dB | 145dB |
| 功率(连续)RMS power | 600W | 1000W |
| 功率(峰值)Peak power | 1200W | 2000W |
| 标称阻抗impedance | 8Ω | 8Ω |
| 覆盖角度Dispersion | 120°H×10°V | 360° |
| 吊挂Hanging. | LQ专用预装件Special pre-assembly | LQ专用预装件Special pre-assembly |
| 底座Bottom sit | … | … |
| 连接器Connector | 2×speakon NL4MP | 2×speakon NL4MP |
| 深×宽×高
Deep×width× height |
370mm×700×475mm | 700mm×700mm×700mm |
| 重量weight | 20Kg | 38kg |
